What is EYEBOX™ ?
EYEBOX™
Advanced Farming
Mojow Autonomous Solutions Inc. (Mojow) is developing an autonomy kit for enabling autonomous farm implement operation (EYEBOX™) that is substantially different and improved from what’s currently utilized within the agricultural market presently. Today, navigation controllers within the market rely solely on the GPS location of the prime mover as input to command the navigation controller, without any situational awareness beyond absolute position location. This current system always requires a human operator to be always present and alert to perform any fluctuating or variable tasks, requiring the human’s situational awareness to complete the given task.
EYEBOX™ is a small, rugged, and economical sensor suite that contains multiple cameras, as well as GPS, combined with a powerful compute unit for real time processing of collected data. When farm machinery is in operation, the EYEBOX™ automatically collects images captured by the cameras and passes them through a deep neural network that classifies each pixel, to create (or update) a complete digital twin representation of the entire farming entity (field boundaries, roads, field entrances, or anything else of interest). The digital twin serves as the real-time digital counterpart of a physical object or attribute within the farm. The completed digital twin becomes the foundation (or main input) of Mojow’s autonomous navigation controller.
SERVICES
1. Hardware & Software
-
Complete hardware package includes GPS, cameras and all the necessary sensors for full autonomy
-
Automatic calibration for all sensors
-
IP69 weather proofing
-
Supports 100+ ft implement width
-
100% proprietary and customizable software developed by Mojow
2. Farm Mapping
-
Map and manage any farm geometry including fields, obstacles, entrances, roads, routes and farmyard
-
Speed control zones
-
Map any complex shape you want using your tractor or your phone
-
Share maps with anyone
-
Edit maps from your phone
3. Path Planning
-
AB lines with many custom options to choose from
-
Headlands for any complex field with many obstacles
-
Customize your coverage plan from your phone
-
Support for any implement of any size

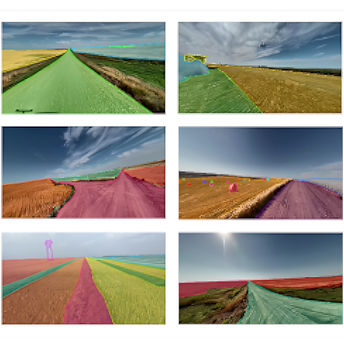

4. Detection Models
-
Mojow owns the most comprehensive farm automation datasets for Artificial Intelligence in the world - 3M+ unique annotated data frames & counting
-
Existing models include the following:
-
Field boundaries, farm implements, field wetness and open water, rocks, ruts and/or anomalies in the field, harvested vs unharvested crop boundary, humans in challenging farming environments, field entrances, rural roadways, farmyards, hay bales, power poles and more.
5. Autonomous Navigation
-
Complete package for steering, engine, transmission and hydraulic control
-
Works with all GPS accuracies (SBAS, WAAS, RTK, etc.)
-
Speed control
-
Autonomous headland management
-
Drive the tractor from your phone
6. Obstacle Detection
-
360 degree obstacle detection for the tractor and attached implement.
-
Support for 100+ ft implement width
-
Tractor stops for detected obstacles. Farmer can live view the camera to see the obstacles
-
Farmer can drive the tractor around the obstacle from the app
-
Detects obstacles of any size: humans, animals, trucks, farm equipment, power poles, hay bales, etc.
7. Operation Management
-
100% control over the operation from the mobile app
-
Livestream any camera from any tractor
-
Supports both local and remote connection to the tractor
-
Adjust the maps, path plans, tractor speed and implement options
-
Start/pause/resume/stop the tractor operation from the app
-
Customize notifications for any events you like such as when the tractor stops or when fuel level is low.
-
Access to historical data from the app
8. Raw Data Assets
-
150+ category of subjects - From all lighting conditions (dawn, dusk, noon, sunny, rainy, foggy, cloudy, night, etc.)
-
All types of real operation (seeding, harvest, harrowing, spraying, etc.)
-
Different crop types
-
We comply with all data privacy and personal data protection guidelines
-
All data is 100% owned by Mojow
